FOOTWEAR STORE PLANNING
A shoe store works as a complete fixture plan.
Connect perimeter presentation, center-floor displays, try-on areas and checkout. Build from our existing fixture types, develop custom pieces, or combine both in one store brief.
Build the fixture list by store zone.
Full collection
Freestanding displays

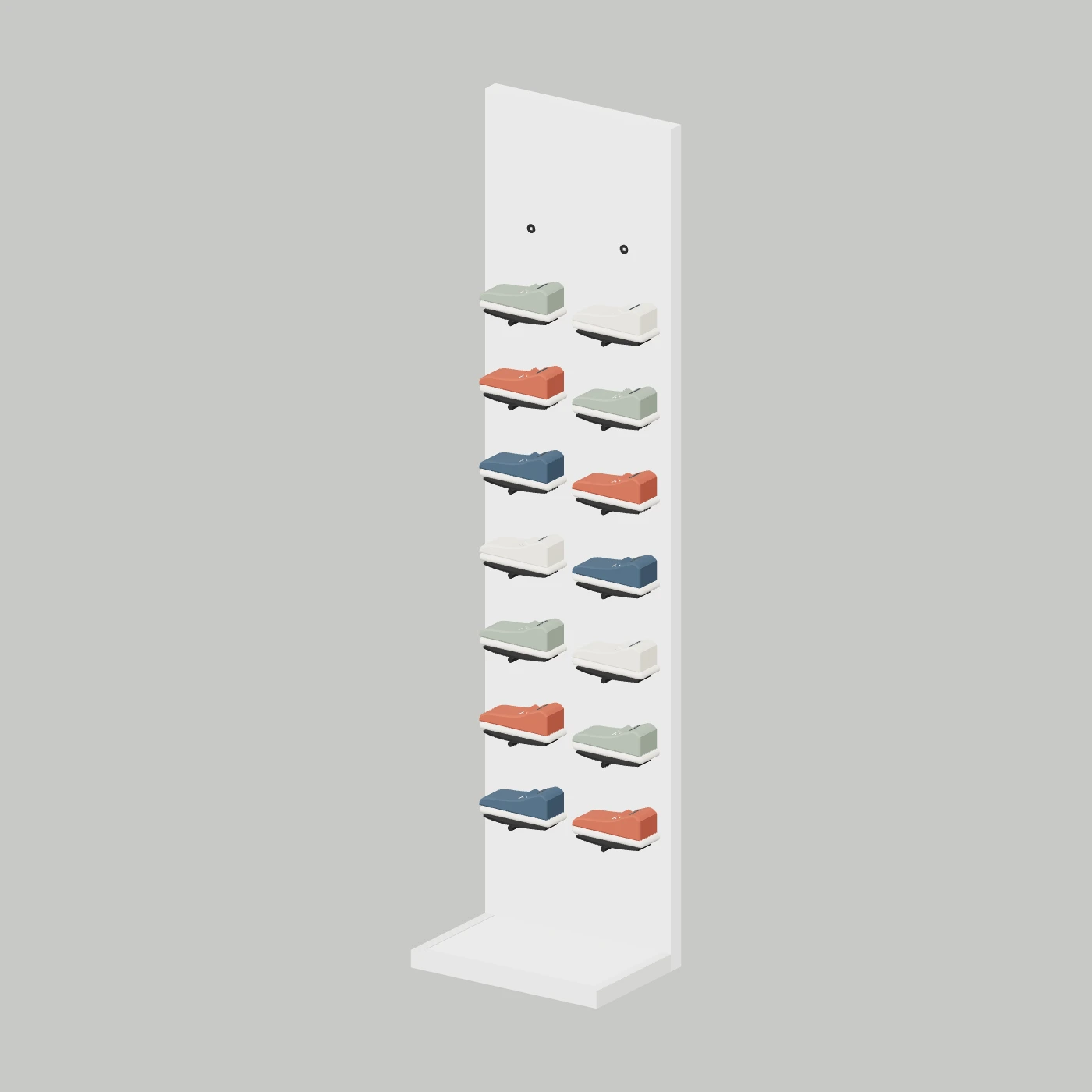

Shoe Display Wall · 600
Perimeter display: a narrower bay to compare with your available wall length.
600 x 410 x 2400 mm
Island displays

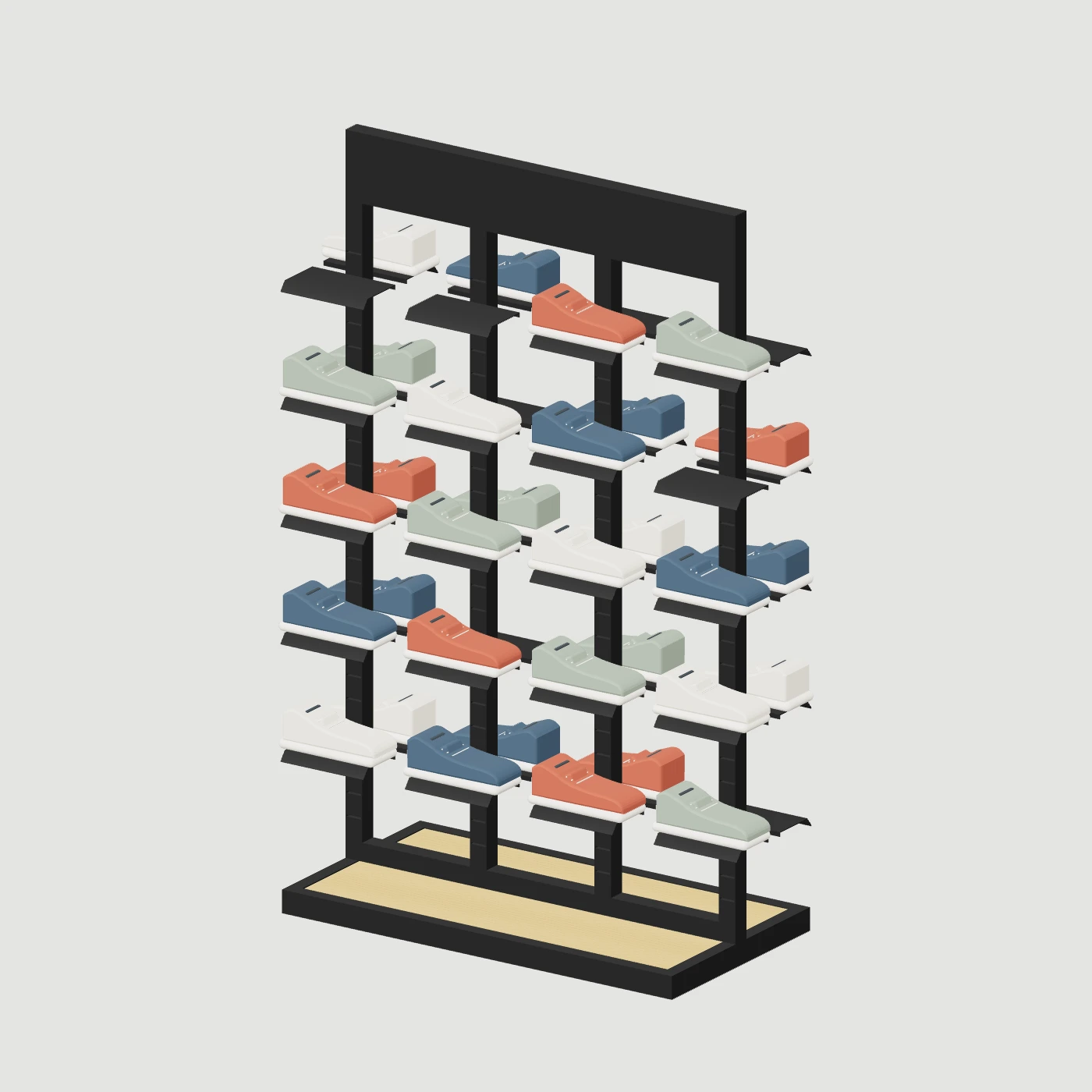

Double-Sided Shoe Island
Center floor: access to footwear from both sides of the fixture.
1100 x 500 x 1600 mm
Checkout counters

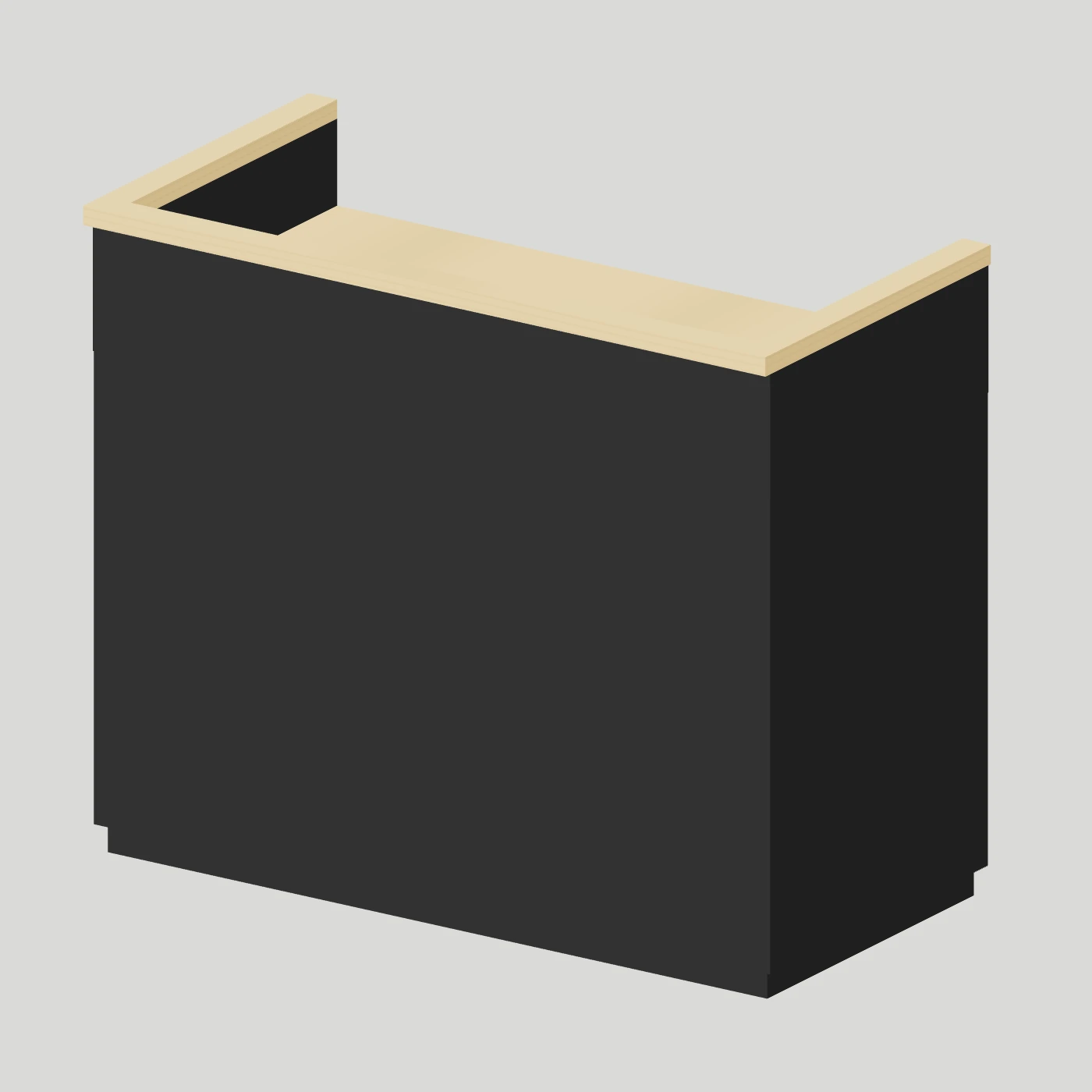

Drawer Checkout Counter · 1200
Checkout: a starting reference; equipment clearance and storage need separate review.
1200 x 642 x 1010 mm
Catalog configuration previews. Merchandise is illustrative; the agreed quotation defines the supplied fixture and accessories.
SIZE COMPARISON
Know the footprint.
Width x depth x height. Millimeters are the source dimensions; inches are rounded for reference. These are not packing dimensions.
| Fixture / SKU | W x D x H (mm) | Approx. W x D x H (in) |
|---|---|---|

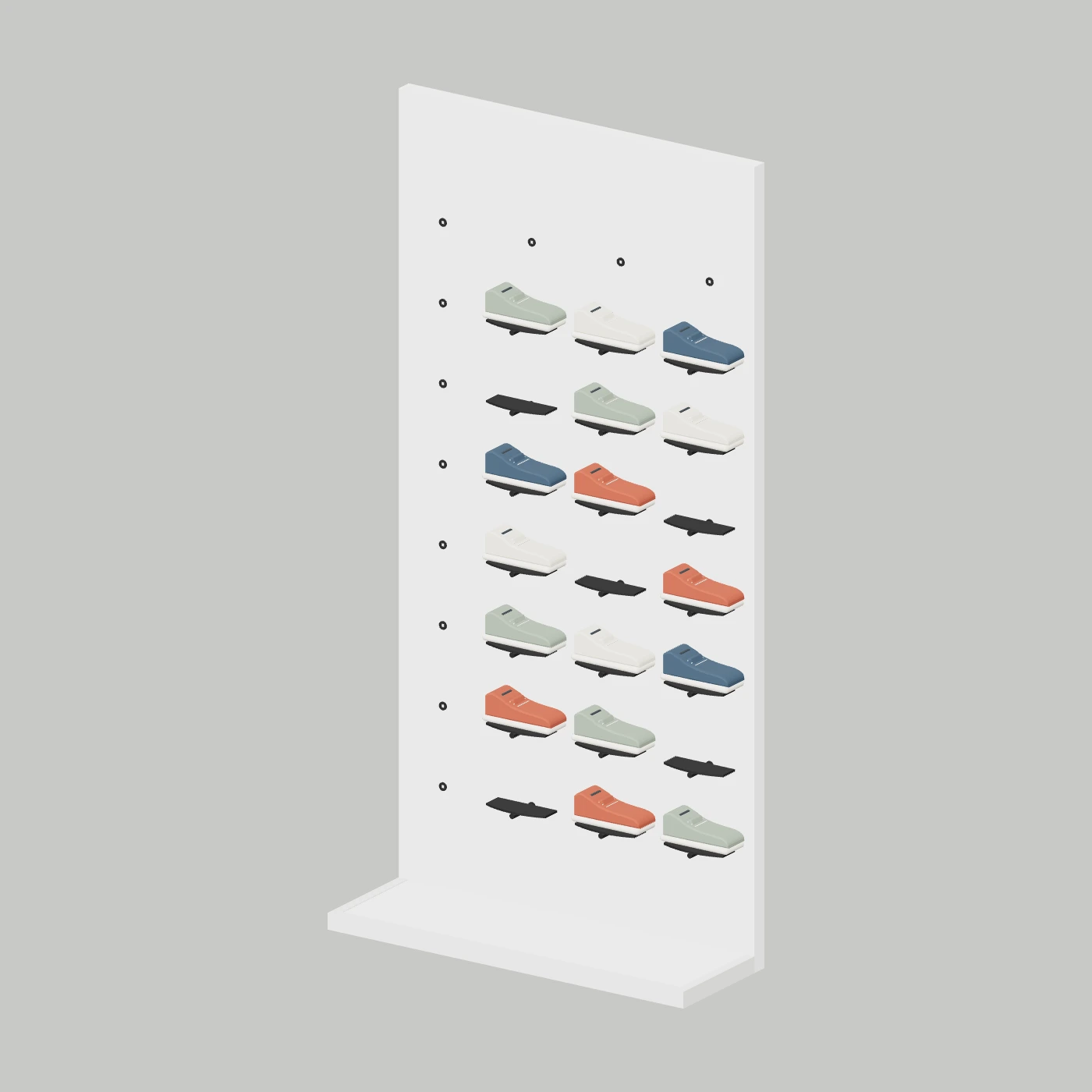

| FY-W003Shoe Display Wall · 1200 | 1200 x 410 x 2400 | 47.2 x 16.1 x 94.5 |
| FY-W004Shoe Display Wall · 600 | 600 x 410 x 2400 | 23.6 x 16.1 x 94.5 |
| FY-I009Double-Sided Shoe Island | 1100 x 500 x 1600 | 43.3 x 19.7 x 63.0 |
| FY-C002Drawer Checkout Counter · 1200 | 1200 x 642 x 1010 | 47.2 x 25.3 x 39.8 |
Decisions before the sample.
Perimeter and focal points
Map available wall runs, doors, columns and services. Decide where new collections need a focal point and where repeated bays are more useful. Include the full shoe projection when checking display depth.
Try-on space and storage
Mark benches, mirrors and the route to stock separately from the display footprint. A display wall is not automatically a shoe-box storage unit. Give the designer the expected box sizes and replenishment method.
A comparable store schedule
List each zone, SKU or custom reference, dimensions, quantity and finish. For several stores, keep a separate quantity schedule for each location so changed layouts do not create ambiguous orders.
OVERSEAS PROJECTS
Plan receiving as well as display.
For a US destination, include the city and ZIP code, delivery access and whether the receiving team can assemble fixtures. The quote should distinguish fixture price, packing and the agreed freight scope.
- Confirm welded versus knock-down construction for the selected unit.
- Agree surface protection, part labels, hardware packs and assembly references.
- Request packed dimensions and weight after the structure is confirmed.
- Have your local project team review site fixing and any electrical requirements.
Freight, duties, local compliance and on-site installation are not automatically included. Confirm the responsibilities in writing for your order.
Export packing checklistBuyer questions.
Can Fengyuan help with a layout using catalog fixtures?+
Share the measured plan and selected fixture types. We can review a fixture-based layout and identify where sizes or custom pieces need discussion. Building approvals and site compliance remain part of the local project review.
Do you provide a turnkey store construction service?+
This website describes fixture manufacturing and project coordination. Building works, electrical installation and on-site installation must be separately agreed; they are not automatically included in a fixture quotation.
Can the fixture plan be used for later stores?+
It can be a starting point. Recheck room dimensions, layout, merchandise and quantities for each location, then confirm the appropriate drawing revision and sample references.
CONTINUE YOUR PROJECT
From comparison to a clear brief.
Share a SKU or reference, quantity, required changes and destination. Drawings are useful, but a product reference is enough to start the conversation.
